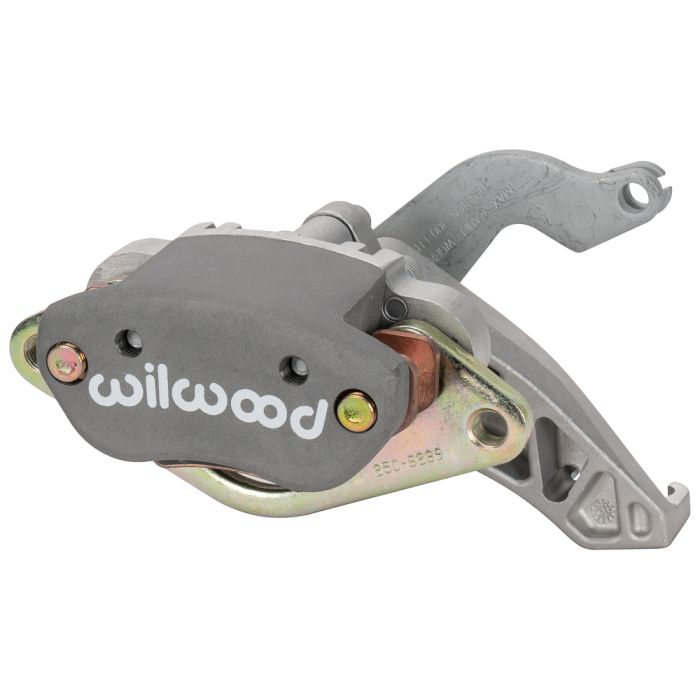

Wilwood MC4 Mechanical Park Brake Caliper Anodized 4-3/4” Mount Passenger Side For 0.17”-0.25” Thick Rotors

Overhaul your vehicle’s faulty or worn-out e-brake caliper with this Wilwood MC4 Passenger-Side Anodized Mechanical Parking Brake Caliper for 0.17” to 0.25” Thick Rotors! This lightweight, cable-operated caliper features a die-cast body and a forged billet anvil, maximizing strength under load. This caliper comes with brake pads that have a high static hold and is pre-fitted with noise-canceling shields to eliminate rattling. To offset pad and rotor wear, this product can be adjusted incrementally without the use of special tools.

Features and Benefits:
- Accepts 0.17”-0.25” thick rotors w/ 11.00”-14.00” diameter
- Passenger-side caliper w/ 4.75” centered mounting holes
- Die-cast body w/ forged billet anvil for ultimate strength under load
- Comes with high-static-hold brake pads
- Pre-fitted with noise-canceling shields
- Steel bracket included for convenient mounting
- Lever cartridge can be clocked in 3 positions, easing cable routing
- Dust-booted piston keeps moisture/debris out
- Caliper fitted with a cable return spring
- Manual adjuster requires no special tools
- Manufactured in the USA

To ease the installation, this caliper comes with a steel mounting bracket, is fitted with a cable return spring, and has a lever cartridge that can be clocked in 3 different positions. The caliper’s aluminum piston is dust-booted to block moisture and debris. Combining high-output performance with a simple design, this caliper is perfect for those that need a separate, mechanically-operated e-brake caliper!

Vehicle Fitment:
- 1965-2023 Ford Mustang
- 1948-1979 Ford F-100
- 1966-1977 Ford Bronco
- 1960-1987 Chevrolet C10
- 1988-1998 Chevrolet/GMC C/K

Tech Tip: The mechanical lever accepts 0.310” diameter barrel-ended parking brake cables.

Please Note: This parking brake caliper is side-specific. This part number is for the right-hand side only. If both left and right sides are needed, see P/N 17264K.
