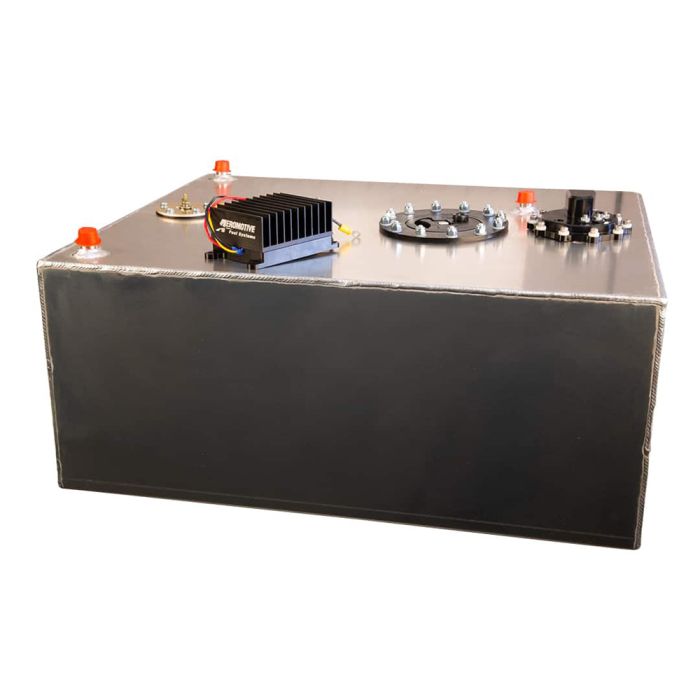

Aeromotive Fuel Cell 20 Gallon With Brushless Spur 5.0 Fuel Pump And TVS Controller
Highlights
- Baffled design
- Aircraft fuel cap
- Fluted pickup with prefilter
- ORB-10 outlet port
Aeromotive 20 Gallon Fuel Cell with True Variable Speed Brushless Spur 5.0 Fuel Pump and Brushless Controller.
This Aeromotive 20 Gallon Fuel Cell comes with an in-tank True Variable Speed (TVS) brushless spur 5.0 fuel pump and brushless controller. These fuel pumps are lighter and more efficient than the traditional Pro-Series pumps. Capable of use with methanol and ethanol-based fuels, these systems are both durable and versatile.
Features and Benefits:
- Universal applications
- 20 Gallon fuel cell
- Size is 31” x 23” x 13”
- Variable pump speed
The included variable-speed controller provides the advantage of built-in pump speed control via a dedicated 0-5V analog DC input signal. These systems minimize motor heat and reduce fuel recycling.
Specifications:
- EFI rated flow of 1700 lbs./hr. @ 45 psi, 13.5 volts
- Carb rated flow of 1850 lbs./hr. @ 9 psi, 13.5 volts
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
- Fuel Injected Engines: GAS
Up to 3400 FWHP – naturally-aspirated
Up to 2600 FWHP – forced air induction
- Carbureted Engines: GAS
Up to 3600 FWHP – naturally-aspirated
Up to 2700 FWHP – forced air induction
- Fuel Injected Engines: E85
Up to 2380 FWHP – naturally-aspirated
Up to 1820 FWHP – forced air induction
- Carbureted Engines: E85
Up to 2520 FWHP – naturally-aspirated
Up to 1890 FWHP – forced air induction
- Fuel-injected engines: METHANOL
Up to 1190 FWHP – naturally-aspirated
Up to 910 FWHP – forced air induction
- Carbureted engines: METHANOL
Up to 1260 FWHP – naturally-aspirated
Up to 945 FWHP – forced air induction
Please Note: Requires straight 12-VDC to the 16-VDC power supply. Not compatible with pulse-modulated systems or fuel pump speed controllers.
California Residents: Proposition 65 Warning
Related Categories: Mustang Parts, Mustang Engine, Mustang Fuel Tank Area, Mustang Fuel Tanks, Ford Bronco Parts
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
Vehicle Fitment
This product will fit the following Bronco years:
This product will fit the following C10 years:
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
This product will fit the following F-100 years:
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
This product will fit the following Mustang years:
