Mishimoto Oil Cooler Kit Universal 10-Row Silver With Braided Lines

Rather than picking up individual parts, simply install the Mishimoto Silver Universal 10-Row Oil Cooler Kit MMOC-U With Braided Lines for an easier project. Change the condition of your engine bay with improved temperatures and maximized engine performance. Your oil system will influence the performance quality, which why CJ Pony Parts offers this kit to prevent negative effects from poor oil cooling.

Lengthen the life span of your high-performance engine with a life-preserving, proper oil temperature regulation. Maintain the control you want over the engine bay temperatures with the Mishimoto universal Oil Cooler Kit MMOC-U. This universal kit includes all key components needed to reduce oil temperatures and provide your engine with extra protection against oil degradation.

Features and Benefits:
- Universal fitment
- 0-row stacked-plate cooler withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss
- Includes either standard or thermostatic billet anodized aluminum sandwich plate
- Durable, leak-free connections with preassembled stainless steel braided oil lines

Specifications:
- Material: 6061 Aluminum
- Core Height: 2.76"
- Rows: 10
- Core Thickness: 1.97"
- Core Length: 11"
- Core Size: 12.91" x 2.81"
- Sandwich Plate Fittings: -10AN
- Cooler Construction Stacked-plate

*Recommended Torque Specification: (For all straight fittings and banjo bolts) 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.

This kit includes a billet anodized aluminum sandwich plate with the choice of a standard or thermostatic form. The optional Mishimoto thermostatic sandwich plate provides additional temperature control and will limit oil flow to the cooler until optimal engine temperatures are reached, which is a recommended choice for those in cooler climates. The included core is a proven Mishimoto 10-row, stacked plate cooler that withstands high fluid pressures and significantly reduce oil temperatures while exhibiting minimal pressure loss. This kit includes both a 3/4" -16 and M20-1.5 sandwich plate adapter for mass model and make vehicle support.

This kit also includes pre-assembled stainless steel braided oil lines with -10AN fittings and seals for durable, leak-free connections. Whether you are piloting a boosted rotary or blown small block the Mishimoto universal oil cooler kit will provide the efficiency you need to stay on the track and out of the shop.

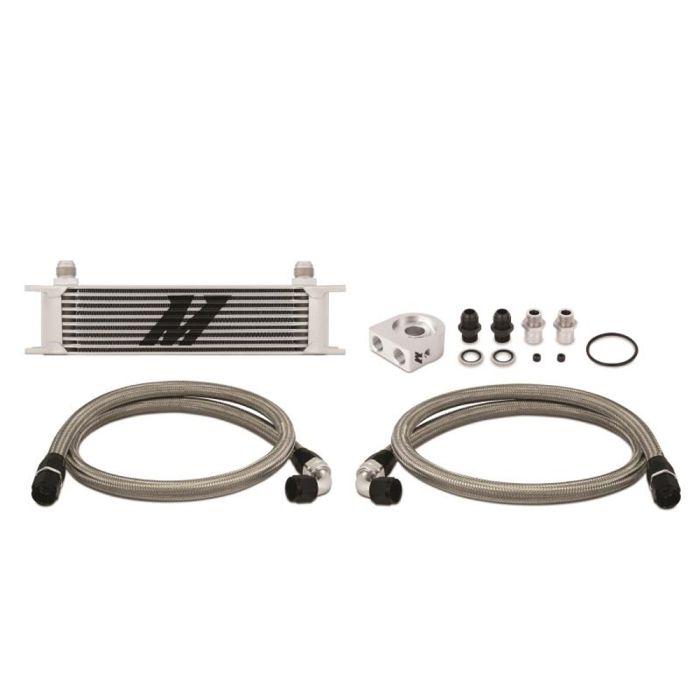

Kit Includes:
- (1) 10-Row Silver Oil Cooler
- (1) 4ft Stainless Steel Braided Hose with -10AN fittings -- One straight fitting and one 90 degree swivel fitting
- (1) 5ft stainless Steel Braided Hose with -10AN fittings -- One straight fitting and one 90 degree swivel fitting
- (1) Non Thermostatic Sandwich Plate
- (2) -10AN Fittings
- (2) Dowty Oil Seals
- (1) Large O-Ring
- (2) 1/8" NPT Allen Key Plugs
- (2) Sandwich plate adapters

Additional Notes:
- No dashes = M20 x 1.5 -- M20 x 1.5; 2 dashes = 3/4" -16UNF -- 3/4" -16UNF
- Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. CJ Pony Parts recommends that you check all connections at regular intervals, especially during the first few miles after installation.
