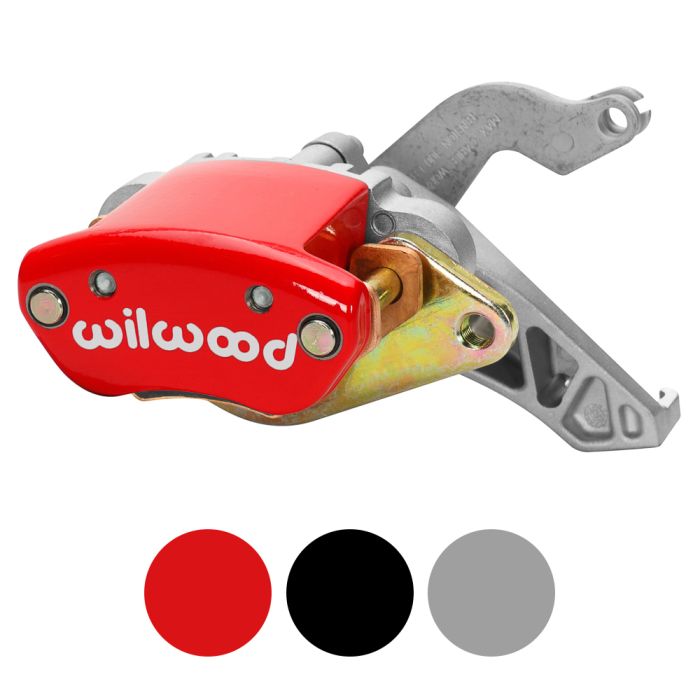

Wilwood MC4 Mechanical Parking Brake Caliper Passenger Side

If your ride requires a separate, mechanically actuated parking brake caliper, look no further than the Wilwood Passenger Side MC4 Mechanical Parking Brake Caliper! The MC4 caliper is designed to accept rotors from 0.71”-0.81” thick and 11”-14” in diameter, providing you with a range of applications. An efficient die-cast body with a forged billet anvil packs superior strength into a lightweight package, with each caliper weighing 3.30 lb with pads. Best of all, Wilwood provides these high-performance MC4 Mechanical Parking Brake Calipers in silver, black, and red high-gloss colors, so you can customize your appearance!

Features & Benefits:
- Available in Silver, Black, & Red
- Die-Cast Body with Forged Billet Anvil
- Pre-Fitted with Noise-Cancelling Shields
- Includes Steel Mounting Bracket
- Durable Powder-Coated Finish
- Fits Passenger Side
- 4.75” Centered Mounting Holes
- Fits 0.71” to 0.81” Thick Rotors
- Fits 11.00” to 14.00” Rotor Diameter
- Brake Pads Included
- Made in the USA

Each Wilwood MC4 Mechanical Parking Brake Caliper is engineered with noise-dampening features, resulting in a quiet, rattle-free operation. For convenient mounting, a steel bracket is provided. The 1.19” aluminum piston is fully dust booted, keeping out moisture and debris. For additional durability, each caliper is finished in a powder coating to protect it from high temperatures, brake fluid, rusting, and corrosion.  No special tools are required thanks to a convenient manual adjuster, allowing incremental adjustment to compensate for pad and rotor wear.

Vehicle Applications:
- 1965-2023 Mustang
- 1948-1979 F-100
- 1966-1977 Bronco
- 1960-1987 C10
- 1988-1998 C/K

Please Note: These Parking Brake Calipers are side specific. This Part number is for the passenger side only. If both driver and passenger sides are needed, see P/N 12069-V.
