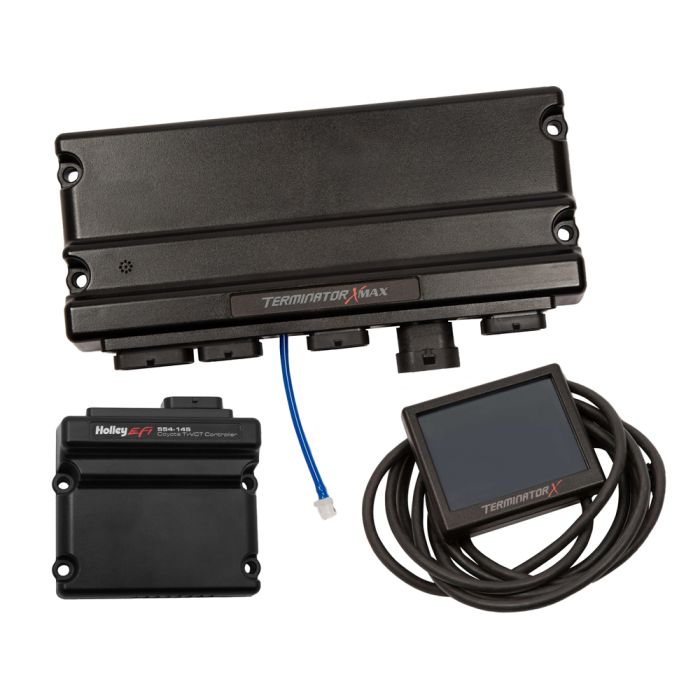

Holley EFI Kit Terminator X Max 1998+ 4R70W/DBW EV Fuel Injectors Ti-VCT Coyote 2015.5-2017

This Holley Terminator X Max Coyote EFI system is great for Coyote engine swaps into earlier chassis and supports 2015.5-2017 Ford Coyote platforms with Ti-VCT. This kit includes a Drive by Wire Throttle Body and 1998 and newer 4R70W Transmission Control capability. This kit is designed to work with late-style Coyote ignition coils and has the option of using your choice of EV1 or EV6-style fuel injectors. Holley’s Terminator X Max features real-time fuel learning, high-impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs for a custom driving experience. These are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more.

Features and Benefits:
- Plug and Play Compatible with Holley EFI Accessories
- Analog gauges, Shift Lights, Modules, and Both 6.86” and 12.3” Pro Dash
- EV1 or EV6 injector Harness Included (Depending on Your Injector Configuration)
- High Impedance Injector Drivers Power Holley EFI and Most Stock Injectors
- Included Bosch LSU 4.9 Wideband O2 Sensors for Accurate Readings and Precise Tuning Control
- Built-in 1Bar MAP sensor Included
harness (kit includes a terminated connector for seamless installation)
- Nitrous Control – Channels for Wet or Dry, Progressive, or Non-Progressive, Rich/Lean Safeties, and Target Closed Loop AFR (Air/Fuel Ratio)
- Advanced Tables for Nearly Unlimited Table Configuration Options
- On-Board Diagnostic LEDS for ECU Power, Engine Run, TPS Calibration, Cam Signal, and More
- LED Lights Help Identify Critical engine Parameters at a Glance
- 3.5” Touchscreen Handheld with Internal Data-Logging, Custom Gauge Display, and Calibration Wizard Allow Quick Building Base Tunes
- Made in the USA

The ECU comes programmed with base maps for common Coyote engine combinations for a quick installation. The kit also includes a 3.5" LCD touchscreen handheld that contains a calibration wizard for easy tuning and easy-to-see gauge display functions. Included with Terminator X Max is Holley’s EFI's easy-to-use software suite that allows full laptop access/compatibility for advanced users.

Technical Notes:
- Compact ECU (Engine Control Unit) – At only 7.45” x 4.1” x 1.66” the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6” x 4.1” x 1.66”).
- For Boosted applications – an internal MAP sensor can be disabled and utilize an external MAP sensor.
- 4 Inputs – 12V, Ground, 5V, and Frequency for Items Like Pressure Sensors, Activation Triggers, Nitrous Activation, or Trans Brake
- Vacuum Hose Adapters Included - (1/8”, ¼”, and 3/16” sizes)

Vehicle Fitment:
1965-2017 Mustang
1966-1977 Bronco
1948-1979 F100
