Oracle Lighting LED Headlight Bulb V Series H7 Pair

Oracle Lighting:
V5232-001
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 133.36ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Highlights

  • No-Glare Illumination
  • Made in the USA
  • Die-Cast Body Design
  • DRL Compatibility
MSRP $119.95
$101.96
You save 15%

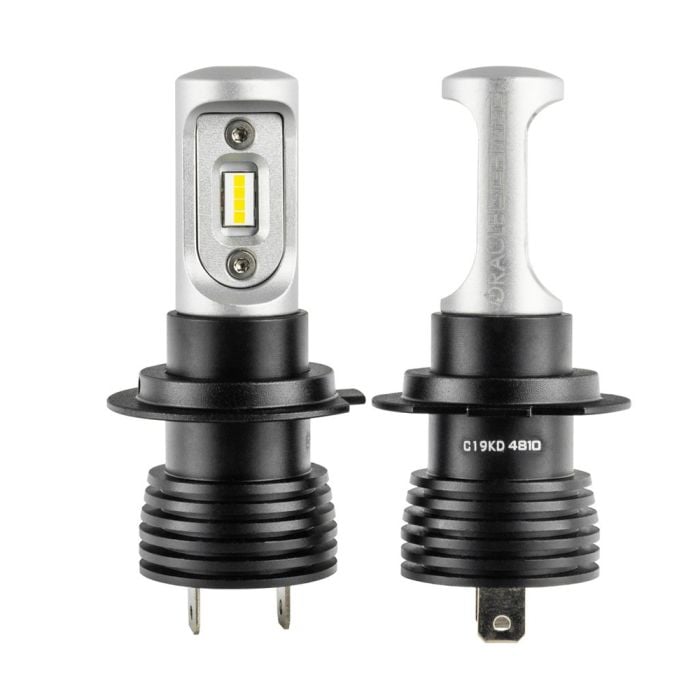

Pair of Oracle Lighting H7 V Series LED Headlight Bulbs.

It's time you convert your headlight bulbs to the power of LED! Oracle Lighting developed the pair of H7- compatible V Series LED Headlight Bulbs V5232-001 with a no-glare illumination that will outshine your factory bulbs day or night. These bulbs are daylight running light compatible and draw 3,600 lumens. The latest V-series technology features fcCSP flip-chip LED packaging for enhanced electrical performance that you just can't get from wire-bonded bulbs.

Features and Benefits:
- “Street-Legal” DOT Compliant LED Conversion
- 6-Volt Daytime Running Light Compatible
- Precision Filament Geometry for No-Glare Illumination
- SmartDrive Thermal Regulation Eliminates Obstructive Cooling Systems
- OEM Fitment for Simple Installation
- Industry-Leading Efficacy Ratio

Specifications:
- Color Temp: 6000K
- Input Voltage: 6-32V DC
- DRL Compatible: YES
- Power Draw: 17W/ Bulb
- Lumens: 3,600LM/ Set
- Efficacy: >100lm/W

The V-Series bulbs offer a smaller form factor due to increased routing density that eliminates wire-bond loops. As a result, ultra-luminous and extremely efficient light output with superior durability and reliability is produced. An all-in-one diecast body design mimics the look of the original factory halogen bulb without any additional wiring or external drivers. The die-cast design also provides increased thermal conductivity and heat dissipation that is supported by SmartDrive active thermal regulation.

Converting to LED is easier than ever with Oracle Lighting's DRL function! The output is put at a reduced voltage with a class-leading 6-32V ultra-wide range voltage protection that prevents common flicker issues. The V-Series bulb will din to 50% brightness in DRL mode just like the factory halogen bulb. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp.

Tech Tip: If the bulb becomes hot and surpasses optimal working temperature, the driver can reduce the current by altering the PWM duty cycle until the temperature stabilizes. Supplementing passive thermal management with active techniques such as this allow for a very small bulb package without risking damage to the LED or creating an environment where the LED lifetime would otherwise be significantly shortened. Although reducing the current reduces luminosity, the current reduction is minimal and such that the change in luminosity is below the threshold that a consumer can detect. Fortunately, the human eye is poor at detecting luminosity changes in high-brightness devices so there is reasonable flexibility in the balance between controlling temperature and noticeably compromising luminosity.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following C10 years:

This product will fit the following Canyon years:

  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following Colorado years:

  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following F-150 years:

This product will fit the following Fiesta years:

This product will fit the following Focus years:

This product will fit the following Gladiator years:

  • 2020

This product will fit the following Mustang years:

This product will fit the following Ram years:

  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,
  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following Ram 2500/3500 years:

  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,
  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following Ranger years:

  • 2019,
  • 2020,

This product will fit the following Sierra years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,
  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following Sierra 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,
  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following Silverado years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,
  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following Silverado 2500/3500 years:

  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
  • 1996,
  • 1997,
  • 1998,
  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following Super Duty years:

  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following Tacoma years:

  • 1995,
  • 1996,
  • 1997,
  • 1998,
  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following Tundra years:

  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,

This product will fit the following Wrangler years:
