Quik-Latch Mini Latch Assembly 1-1/4" Diameter QL-25 Series Blue Anodized

If you’re looking for a latching solution that is both durable and stylish, look no further than this Blue Anodized QL-25 Series 1-1/4” Diameter Mini Latch Assembly (QL-25-BU) from Quik-Latch.

Features and Benefits:
- Fits any vehicle
- Sold individually
- Blue anodized finish
- Push button release mechanism
- Constructed from T-6 billet aluminum
- Stainless steel hardware
- 150lbs. hold force
- 1-1/4” upper diameter
- Sleek and aerodynamic
- Made in the USA

This Mini Latch Assembly from Quik-Latch is designed for multiple applications and is made proudly in the United States. This latch assembly is engineered for components that are required to be attached and detached repeatedly. It can also act as a substitute for quarter turn type fasteners. Some quarter turn fasteners require the use of a tool or flat tip screwdriver to disengage them, whereas this mini latch doesn’t need any tools to disengage, only the push of your finger!

This push button latch is slightly larger in diameter than a quarter and is very strong for its size. It can withstand up to 150 pounds of pulling force before experiencing failure. The latch has the NHRA’s stamp of approval for use in drag racing competition, further proving the strength and durability of the mini latch assembly. Made from T-6 billet aluminum and stainless steel to resist corrosion, this assembly comes in a blue anodized finish, but can be painted to match your vehicle’s exterior color.

Please Note: This QL-25 Series Mini Latch is sold individually.

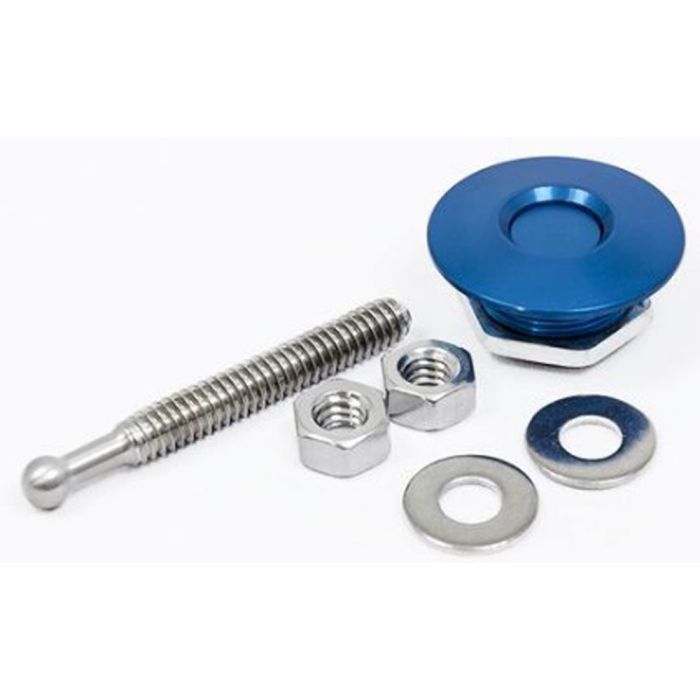

Kit Includes:
- One (1) QL-25 Series latch mechanism
- One (1) retaining ring
- Two (2) ¼”-20 stainless steel nuts
- Two (2) stainless steel washers
- One (1) ¼”-20 mounting pin

Dimensions:
- Upper diameter of latch body: 1.25”
- Length of latch body: 0.57”
- Length of mounting stud: 2.13”
