Wilwood 12” Flexline Brake Hose Kit W/ Weld-On Tab
Highlights
- Universal Fitment
- Braided Stainless Steel Lines
- Secures Hardlines/Flexlines
- Prevents Vibration Damage

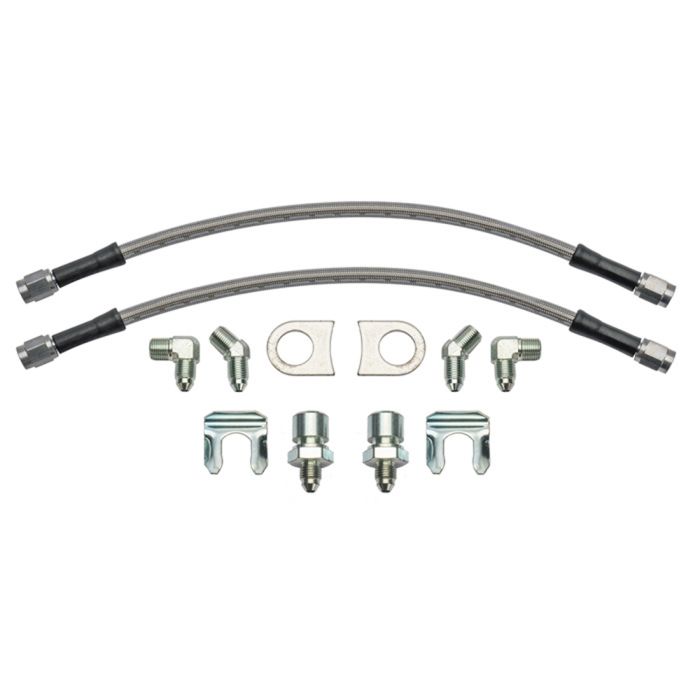

Wilwood 12” Flexline Brake Hose Kit with a Weld-On Tab, 3/8”-24 Chassis Fitting, and 90-Degree Caliper Fitting.
Bolster your brake system’s security with the help of Wilwood’s 12” brake hose kit (220-17288)! It features high-quality 12” flexlines made of braided stainless steel. Once welded, the included brackets secure the 3/16” chassis hardlines and flexlines together. In doing so, it helps prevent damages caused by vibrations.
Features and Benefits:
- Universal fitment
- 12” braided stainless steel flexlines
- When welded, brackets secure chassis hardlines and flexlines
- Prevents breakage and vibrational damage
Specifications:
- Length: 12”
- Size: -3 (3/16”)
- Chassis fitting size: -3 to 3/8”-24 IF
- Inlet fitting: -3 female
- Inlet fitting angle: straight
- Outlet fitting: -3 female
- Outlet fitting angle: straight
- Caliper fitting angle: 90°
- Caliper fitting thread: 1/8”-27 NPT
Tech Tip: Wilwood highly recommends using these top-quality flexlines to replace the OE rubber hoses.
California Residents: Proposition 65 Warning
Related Categories: Mustang Brake Hoses, Ford F-150 Raptor Parts, Restomod Brakes, F-150 Brakes, Focus ST Brake Hoses
Vehicle Fitment
This product will fit the following Bronco years:
This product will fit the following C/K years:
- 1988,
- 1989,
- 1990,
- 1991,
- 1992,
- 1993,
- 1994,
- 1995,
- 1996,
- 1997,
- 1998,
This product will fit the following C10 years:
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
This product will fit the following F-100 years:
- 1948,
- 1949,
- 1950,
- 1951,
- 1952,
- 1953,
- 1954,
- 1955,
- 1956,
- 1957,
- 1958,
- 1959,
- 1960,
- 1961,
- 1962,
- 1963,
- 1964,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
This product will fit the following F-150 years:
This product will fit the following Focus years:
This product will fit the following Mustang years:
- 1964.5,
- 1965,
- 1966,
- 1967,
- 1968,
- 1969,
- 1970,
- 1971,
- 1972,
- 1973,
- 1974,
- 1975,
- 1976,
- 1977,
- 1978,
- 1979,
- 1980,
- 1981,
- 1982,
- 1983,
- 1984,
- 1985,
- 1986,
- 1987,
- 1988,
- 1989,
- 1990,
- 1991,
- 1992,
- 1993,
- 1994,
- 1995,
- 1996,
- 1997,
- 1998,
- 1999,
- 2000,
- 2001,
- 2002,
- 2003,
- 2004,
- 2005,
- 2006,
- 2007,
- 2008,
- 2009,
- 2010,
- 2011,
- 2012,
- 2013,
- 2014,
- 2015,
- 2016,
- 2017,
- 2018,
- 2019,
- 2020,
- 2021,
- 2022,
- 2023,
- 2024,
- 2025,
- 2026,
