COMP Cams Conical Valve Spring Kit 7.3L Godzilla Engine

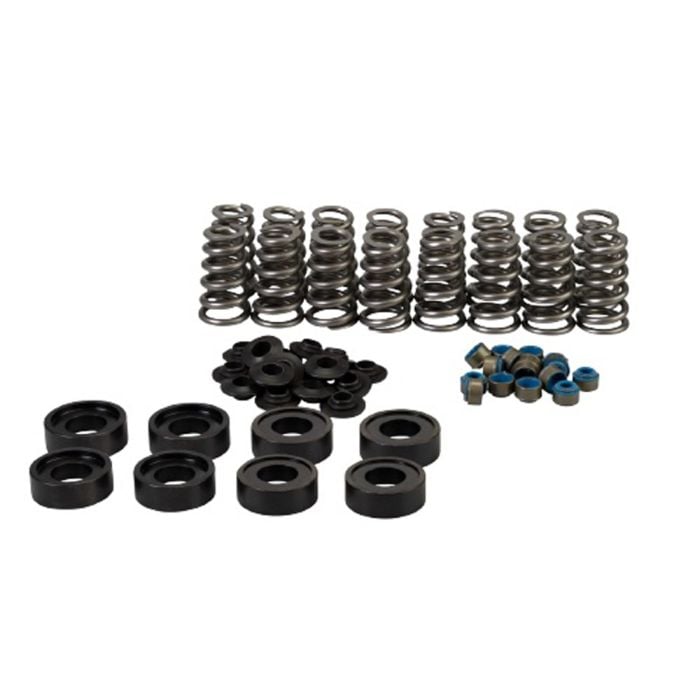

COMP Cams has continued to innovate and revolutionize the performance industry with this Conical Valve Spring Kit (7230GCS-KIT) for 7.3L Godzilla Engines. This kit features high-quality springs that are designed to withstand increased rpms, with a max lift capable of .675". Not only does this lead to increased performance throughout the rpm band, but it also decreases spring oscillations and reduces resonance. The kit also includes durable chromoly valve spring retainers, which complement Comp Cams camshafts. This kit is made in the USA with the highest quality materials and attention to detail.

Features and Benefits:
- High-quality conical valve springs
- Withstands increased rpms
- Max lift capable of .675”
- Increased performance throughout the rpm band
- Decreases spring oscillations
- Reduced resonance
- Durable chromoly valve spring retainers
- Complements comp cams camshafts
- Made in the USA

Specifications:
- Open height: 1.225”
- Max lift: 0.675"
- Installed height: 1.9"
- Coil bind height: 1.185"
- Spring style: conical
- Spring rate: 520 (lbs./in)
- Retainer material: Chromoly
- Valve stem size: .315" / 8 mm
- Valve lock type: 7°
- Spring seat type: non-integrated
- Number of springs per valve: 1
- Load at installed height: 145 (lbs.)
- Load at open height: 496 (lbs.)
- Valve spring finish: super finished
- Spring seat OD: 1.65"
- Machine work required: No
