FiTech Nitro-Port LS3 500HP Cast Loaded/ Short Intake Manifold
Highlights
- 500HP Rated Design
- 92mm Throttle Body
- Nitrous Injection Ready
- Low Profile Intake

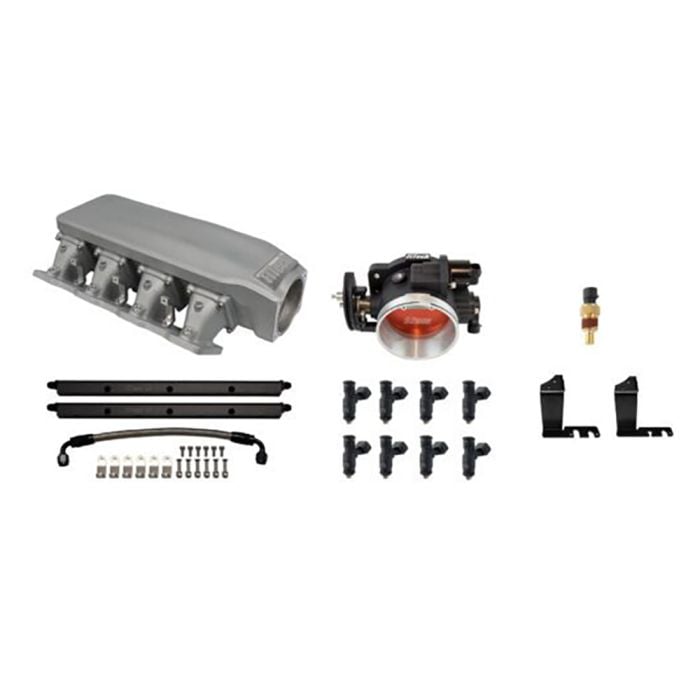

FiTech Nitro-Port 500HP Cast Loaded/Short Intake Manifold for LS3 Engines.
Upgrade your LS3 build with this FiTech Nitro-Port intake manifold! It features a low-profile cast design with short runners to improve high-RPM airflow.
Features and Benefits:
- Low-profile, short-runner design for high-RPM performance
- Includes cable-driven 92mm throttle body
- Compatible with 92mm and 102mm throttle bodies
- Integrated -8 AN fuel rails with -8ORB fittings
- Built-in nitrous/water injection bungs
- LS3 intake port configuration
- Rear-mounted MAP sensor and vacuum ports
- Supports up to 500 horsepower
This manifold includes -8 AN fuel rails with ORB fittings for consistent fuel delivery. For added performance capability, it comes with integrated nitrous or water injection bungs. It includes a cable-driven 92mm throttle body that supports multiple throttle body sizes. Rear-mounted vacuum ports and MAP sensor placement allow for simplified routing.
Vehicle Fitment:
- All LS3-Swapped Vehicles
