Aeromotive Fuel Cell 6 Gallon W/ Brushless Spur 3.5 Fuel Pump/TVS Controller

Aeromotive:
19303

Highlights

  • Race-Rady 6-Gallon Fuel Cell
  • Lightweight Spur 3.5 Fuel Pump
  • Brushless TVS Controller
  • Made in the USA
$2,750.95
Earn
points.

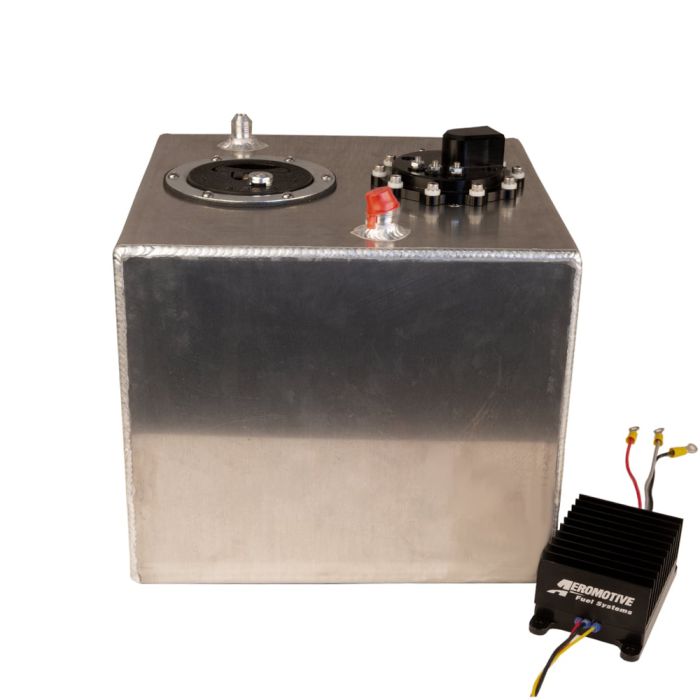

Aeromotive 6-Gallon Fuel Cell with a Brushless Spur 3.5 Fuel Pump and True Variable Speed Controller.

Get your ride ready for race day with an Aeromotive 6-Gallon Fuel Cell with a Brushless Spur 3.5 Fuel Pump and True Variable Speed Controller! This 18” x 13” x 13” cell is an upgrade for your factory gas tank, offering improved durability, performance, and integrated protections should the worst happen. The in-tank brushless Spur 3.5 fuel pump is lighter than pro-series pumps and offers an extended lifespan in methanol and ethanol applications. This pump also reduces current draw at high EFI pressures and uses the spur-gear pumping mechanism to ensure every drop of fuel is used.

Features and Benefits:
- Durable, race-ready 6-gallon fuel cell
- Includes Lightweight Spur 3.5 fuel pump
- Pump reduces current draw at high EFI pressures
- Pump offers long service life in methanol and ethanol
- Includes brushless TVS controller
- Controller keeps fuel cool and produces a reliable fuel flow
- Controller decreases motor heat and fuel recycling
- Universal application fitment
- Made in the USA and built for performance

In addition to the pump, this kit comes with an integral, external, brushless true variable speed (TVS) controller for a clean installation, cooler fuel, and a more reliable flow. This controller offers built-in pump speed control that operates via a dedicated 0-5V analog DC input signal. It also reduces fuel flow during low engine demand and further decreases current draw, decreasing motor heat and fuel recycling. Each component in this kit is made in the USA and designed to withstand the rigors of true performance driving.

Please Note: Requires straight 12-VDC to the 16-VDC power supply. Not compatible with pulse-modulated systems or fuel pump speed controllers.

Fuel Pump Performance Specifications:
- EFI-rated flow of 1250 lbs./hr. @ 45 psi, 13.5 volts
- Carb-rated flow of 1350 lbs./hr. @ 9 psi, 13.5 volts
- 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.

Engine Specifications:
- Fuel Injected Engines: GAS
up to 2400 FWHP – naturally-aspirated
up to 1800 FWHP – forced air induction
- Carbureted Engines: GAS
up to 2600 FWHP – naturally-aspirated
up to 2000 FWHP – forced air induction
- Fuel Injected Engines: E85
up to 1680 FWHP – naturally-aspirated
up to 1260 FWHP – forced air induction
- Carbureted Engines: E85
up to 1820 FWHP – naturally-aspirated
up to 1400 FWHP – forced air induction
- Fuel-injected engines: METHANOL
up to 840 FWHP – naturally-aspirated
up to 630 FWHP – forced air induction
- Carbureted engines: METHANOL
Up to 910 FWHP – naturally-aspirated
Up to 700 FWHP – forced air induction

California Residents: Proposition 65 Warning

Related Categories: Mustang Parts, Mustang Engine, Mustang Fuel Tank Area, Mustang Fuel Tanks, Ford Focus ST Parts

Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:

  • 1965 and older U.S. manufactured California certified vehicles
  • 1967 and older U.S. manufactured federally certified vehicles

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following C10 years:

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following F-150 years:

This product will fit the following Fiesta years:

  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,

This product will fit the following Focus years:

This product will fit the following Gladiator years:

  • 2020,
  • 2021,
  • 2022,

This product will fit the following Mustang years:

This product will fit the following Ranger years:

  • 2019,
  • 2020,
  • 2021,
  • 2022,

This product will fit the following Super Duty years:

  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,
  • 2021,
  • 2022,

This product will fit the following Wrangler years:

  • 1987,
  • 1988,
  • 1989,
  • 1990,
  • 1991,
  • 1992,
  • 1993,
  • 1994,
  • 1995,
  • 1997,
  • 1998,
  • 1999,
  • 2000,
  • 2001,
  • 2002,
  • 2003,
  • 2004,
  • 2005,
  • 2006,
  • 2007,
  • 2008,
  • 2009,
  • 2010,
  • 2011,
  • 2012,
  • 2013,
  • 2014,
  • 2015,
  • 2016,
  • 2017,
  • 2018,
  • 2019,
  • 2020,
  • 2021,
  • 2022,
